Water Desalination Plant with a Capacity of 10 m³/day
Safe fresh water has become an indispensable element for sustaining residential, agricultural and industrial projects. Where there is a steady daily water demand, a water desalination plant with a capacity of 10 m³/day is a practical and economical solution, especially when relying on low-salinity wells or municipal network water.
This capacity serves medium-sized farms, light industrial workshops, small residential buildings, and service facilities such as clinics and private schools. Thanks to its reverse osmosis technology (RO), the water desalination plant with a capacity of 10 m³/day ensures stable water quality, with operating costs that are easy to control.
About the Water Desalination Plant with a Capacity of 10 m³/day
- Technology used: Reverse Osmosis (RO)
- Water sources:
- Low-salinity wells (less than 2000 ppm)
- Municipal network water
- Product water quality:
- Drinking-quality water
- Suitable for various residential, agricultural and industrial uses
Design Specifications of the Water Desalination Plant with a Capacity of 10 m³/day
| Specification | Unit | Value |
| Plant model | D-RO-10 | |
| Dimensions (L*W*H) | cm | 300*400*200 |
| Feed water salinity TDS | PPM | Up to 2000 |
| Product water salinity TDS | PPM | < 100 |
| Desalination rate | 99% | |
| Raw water flow rate | L/h | 900 |
| Product water flow rate | L/h | 450 |
| RO recovery rate RO | 50% | |
| Raw water temperature | ℃ | 5～40 |
| Raw water pH value | 3.0～10.0 | |
| Product water pH value | 7.0～8.0 | |
| Electrical power | KW | 3.7 |
| Electric current type | AC | |
| Voltage | V | 220 |
| Frequency | Hz | 50 |
| Plant operating pressure | Bar | 4 |
Process Stages of the 10 m³/day Water Desalination Plant
- Pretreatment: Sand and carbon filters (media), cartridge filters (micron), antiscalant system.
- Main unit: RO membranes inside RO pressure vessels (housings) with high-pressure pumps.
- Measurement and control: Automatic operation and monitoring of the plant’s parts and components.
- Post-treatment: Final disinfection (chlorine/ultraviolet UV).

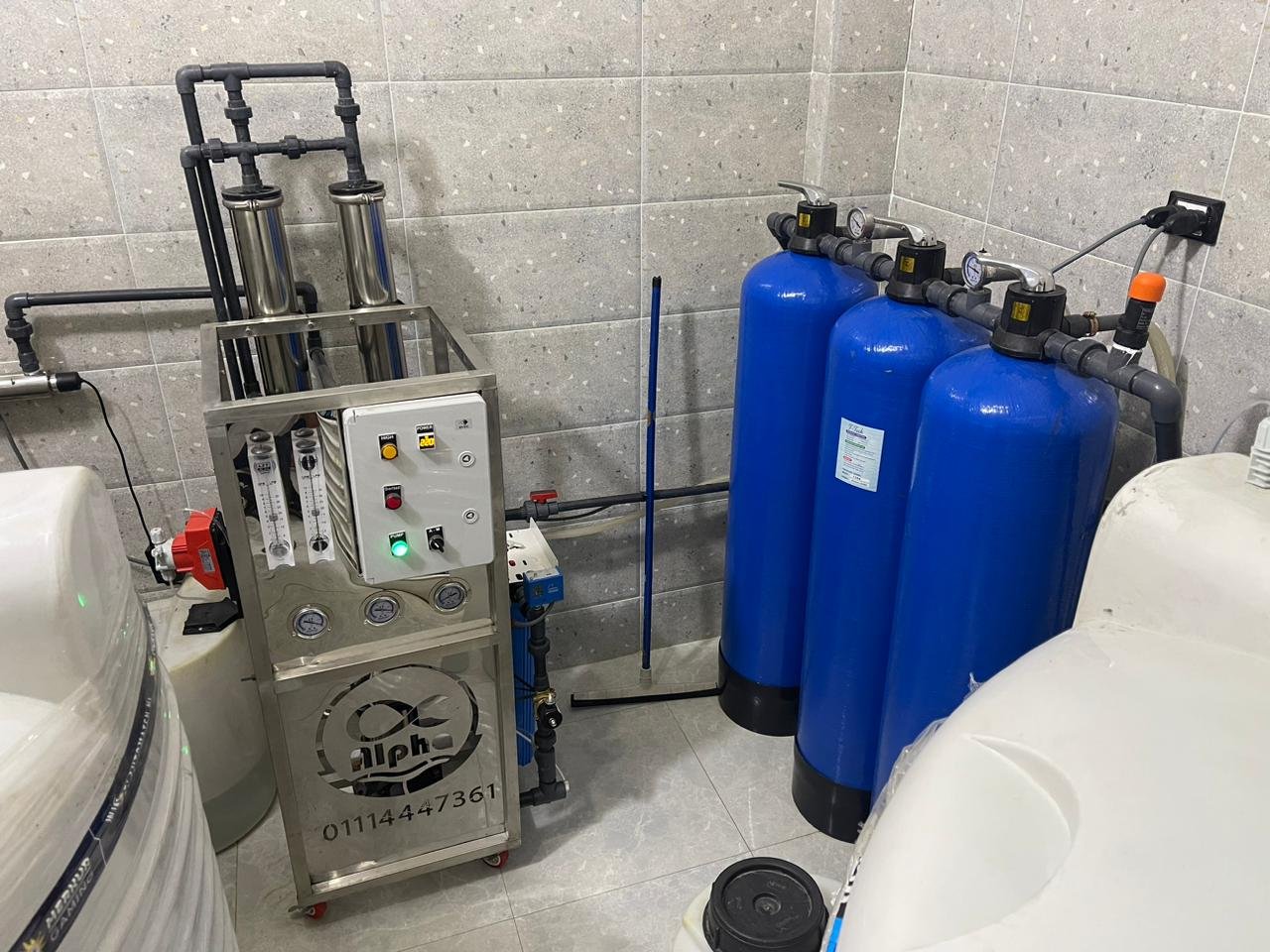

Components of the Water Desalination Plant with a Capacity of 10 m³/day
| No. | Item | Function |
| 1 | Qty 1 – 1000-liter initial water tank | Stores the raw water to prepare it for the treatment process |
| 2 | Qty 1 – Italian stainless steel feed pump | Draws the raw water and pushes it through the initial treatment stages (chlorine, filters, antiscalant, etc.) |
| 3 | Qty 1 Flow switch to shut off the feed pump | Automatically shuts off the feed pump when the water supply is interrupted or the pressure drops below the permitted limit |
| 4 | Qty 1 – Italian chlorine dosing pump | Injects the chlorine solution to disinfect the raw water, kill bacteria and algae, and protect the filters and membranes from biological fouling |
| 5 | Qty 1 – Chlorine dosing tank | Stores the chlorine solution for the pump to draw from |
| 6 | Qty 1 – Sand filter 13*54 inch | Removes suspended impurities such as sand, silt and coarse organic matter |
| 7 | Qty 1 – Carbon filter 13*54 inch | Removes free chlorine, organic matter, odors and unwanted taste from the water |
| 8 | Qty 1 – Italian antiscalant dosing pump | Injects the antiscalant solution before the water enters the membranes to prevent the formation of precipitated salts |
| 9 | Qty 1 – Antiscalant dosing tank Function: storing the chlorine solution | Stores the antiscalant solution for the pump to draw from |
| 10 | Qty 2 – 20-inch micron filter | Removes fine impurities larger than 5 microns after the sand and carbon filters |
| 11 | Qty 1 – Stainless steel high-pressure pump (Italian) | Raises the water pressure to the level required to overcome the osmotic pressure and push the water through the membranes |
| 12 | Qty 2 – 4-inch American membranes | Remove dissolved salts, heavy metals, chemicals and bacteria from the water |
| 13 | Qty 2 – 4-inch pressure vessels (housings) | Tubes that contain the membranes and withstand the high water pressure |
| 14 | Qty 1 – Operation and control panel | Controls the operation of the water desalination plant automatically |
| 15 | Qty 1 – Plant support frame | Carries the components of the water desalination plant so they are assembled into a compact unit that is easy to transport and install |
| 16 | Interconnecting piping between the water desalination plant equipment | Conveys the water between the stages of the water desalination plant |
| 17 | Qty 2 – Flow meters | Measure the water flow rate per second |
| 18 | Qty 5 – Pressure gauges | Measure the water pressure in the line they are installed on |
| 19 | Qty 1 – Low-pressure switch | Shuts off the pump when the pressure drops below the minimum limit |
| 20 | Qty 1 – Solenoid valve | Opens and closes the water flow in the line it is installed on |
| 21 | Qty 1 – UV disinfection unit | Disinfects the product water and kills any remaining bacteria or viruses |
| 22 | Qty 1 – 1000-liter polyethylene final tank | Stores the product water to prepare it for use |
| 23 | Qty 1 – Italian stainless steel final product pump | Draws the desalinated water from the tank |
| 24 | Qty 1 – Flow switch to shut off the final product pump | Automatically shuts off the pump when the water supply is interrupted |
For the full specifications of the water desalination plant with a capacity of 10 m³/day, request a quote now!
Process Flow Diagram
Key applications of the Water Desalination Plant with a Capacity of 10 m³/day
- Poultry and livestock farms
- Ships and marine vessels
- Food, pharmaceutical and chemical factories
- Hotels and tourist resorts
- Charity projects
Advantages of the Water Desalination Plant with a Capacity of 10 m³/day
- A complete Turnkey system for easy operation
- Automatic operation equipped with protection systems and alarms
- Compact design suitable for limited spaces
- High-quality materials for greater efficiency and lower energy consumption
- Easy maintenance and availability of spare parts
- Product water that meets international drinking water quality standards
Operating Supplies (Consumables and Chemicals)
The water desalination plant is distinguished by low operating costs, and Alpha Company provides the operating supplies free of charge for the first 6 months, including:
- Cartridge filter elements
- Disinfectants (chlorine – powder or solution)
Maintenance and Warranty
- A comprehensive two-year warranty against defects in workmanship and materials
- Maintenance work must be carried out by the Alpha team
- The warranty does not cover failures resulting from negligence or misuse
- Rapid response to emergency failures
- Scheduled periodic maintenance visits to ensure operating efficiency and continuity
Site Survey for Installing the Water Desalination Plant with a Capacity of 10 m³/day
A field survey is an essential step to reduce the risk of an unsuitable design, and it includes:
- Taking fresh water samples and carrying out a comprehensive analysis
- Reviewing the available power source (electricity – available generator capacity – solar energy)
- Determining the water intake route and brine discharge
- Evaluating the installation space, ventilation, ease of maintenance, and noise level
